Please send RFQ , we will respond immediately.

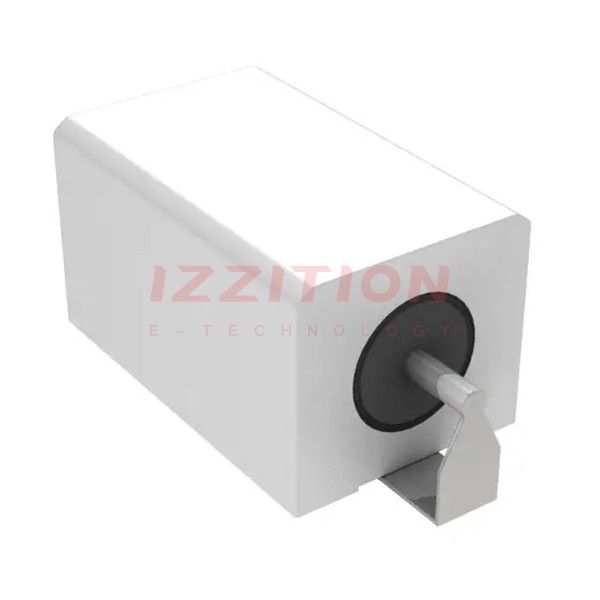

| Part Number | ERX-2HZJR12H | ERX-2HZJR15H | ERX-2HZJR18H | ERX-1HZJR12H | ERX-2HZJR10H |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 120 mOhms | 150 mOhms | 180 mOhms | 120 mOhms | 100 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 2W | 2W | 2W | 1W | 2W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Temperature Coefficient | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C |
| Operating Temperature | -55°C ~ 180°C | -55°C ~ 180°C | -55°C ~ 180°C | -55°C ~ 180°C | -55°C ~ 180°C |
| Package / Case | SMD Flattened J -Bend Axial Lead | SMD Flattened J -Bend Axial Lead | SMD Flattened J -Bend Axial Lead | SMD Flattened J -Bend Axial Lead | SMD Flattened J -Bend Axial Lead |
| Supplier Device Package | SMD | SMD | SMD | SMD | SMD |
| Ratings | - | - | - | - | - |
| Size / Dimension | 0.472" L x 0.252" W (12.00mm x 6.40mm) | 0.472" L x 0.252" W (12.00mm x 6.40mm) | 0.472" L x 0.252" W (12.00mm x 6.40mm) | 0.354" L x 0.220" W (9.00mm x 5.60mm) | 0.472" L x 0.252" W (12.00mm x 6.40mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.205" (5.20mm) | 0.236" (6.00mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - |
