ERO-S2PHF22R0
  • Share:

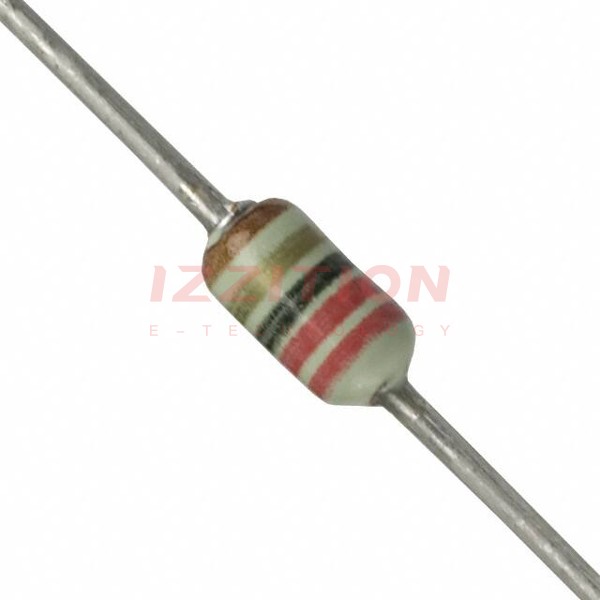

Panasonic Electronic Components ERO-S2PHF22R0

Manufacturer No:
ERO-S2PHF22R0
Manufacturer:
Panasonic Electronic Components
Package:
Cut Tape (CT)
Datasheet:
ERO-S2PHF22R0 Datasheet
ECAD Model:
-
Description:
RES 22 OHM 1% 1/4W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:22 Ohms
Tolerance:±1%
Power (Watts):0.25W, 1/4W
Composition:Metal Film
Features:-
Temperature Coefficient:±50ppm/°C
Operating Temperature:-55°C ~ 150°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.067" Dia x 0.126" L (1.70mm x 3.20mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

-
305

Please send RFQ , we will respond immediately.

Similar Products

Part Number ERO-S2PHF22R0 ERO-S2PHF27R0   ERO-S2PHF24R0   ERO-S2PHF62R0   ERO-S2PHF82R0   ERO-S2PHF12R0   ERO-S2PHF20R0   ERO-S2PHF2200
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Resistance 22 Ohms 27 Ohms 24 Ohms 62 Ohms 82 Ohms 12 Ohms 20 Ohms 220 Ohms
Tolerance ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Power (Watts) 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W
Composition Metal Film Metal Film Metal Film Metal Film Metal Film Metal Film Metal Film Metal Film
Features - - - - - - - -
Temperature Coefficient ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C
Operating Temperature -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C
Package / Case Axial Axial Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial Axial Axial
Size / Dimension 0.067" Dia x 0.126" L (1.70mm x 3.20mm) 0.067" Dia x 0.126" L (1.70mm x 3.20mm) 0.067" Dia x 0.126" L (1.70mm x 3.20mm) 0.067" Dia x 0.126" L (1.70mm x 3.20mm) 0.067" Dia x 0.126" L (1.70mm x 3.20mm) 0.067" Dia x 0.126" L (1.70mm x 3.20mm) 0.067" Dia x 0.126" L (1.70mm x 3.20mm) 0.067" Dia x 0.126" L (1.70mm x 3.20mm)
Height - Seated (Max) - - - - - - - -
Number of Terminations 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - -
