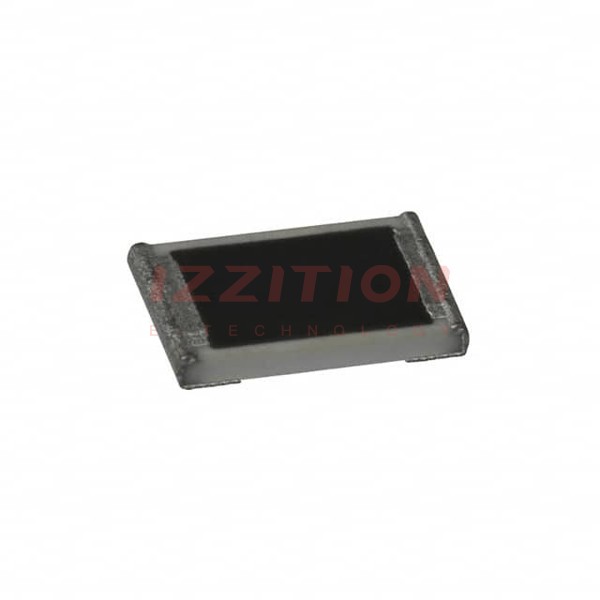

| Part Number | ERJ-XGNJ560Y | ERJ-XGNJ563Y | ERJ-XGNJ564Y | ERJ-XGNJ562Y | ERJ-XGNJ561Y | ERJ-XGNJ160Y | ERJ-XGNJ360Y | ERJ-XGNJ510Y |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 56 Ohms | 56 kOhms | 560 kOhms | 5.6 kOhms | 560 Ohms | 16 Ohms | 36 Ohms | 51 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±300ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 |
| Ratings | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
