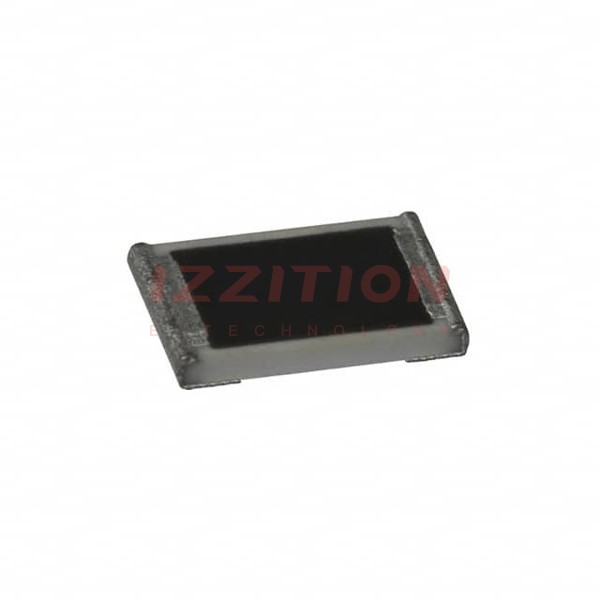

| Part Number | ERJ-XGNF1180Y | ERJ-XGNF1181Y | ERJ-XGNF1182Y | ERJ-XGNF1183Y | ERJ-XGNF11R0Y | ERJ-XGNF1580Y | ERJ-XGNF1780Y | ERJ-XGNF1100Y | ERJ-XGNF1130Y | ERJ-XGNF1150Y |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 118 Ohms | 1.18 kOhms | 11.8 kOhms | 118 kOhms | 11 Ohms | 158 Ohms | 178 Ohms | 110 Ohms | 113 Ohms | 115 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±300ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
