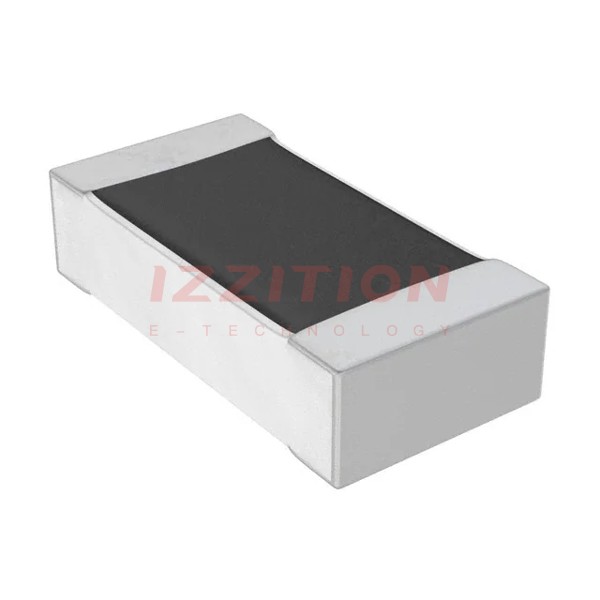

| Part Number | ERJ-PM8F5604V | ERJ-PM8F5624V | ERJ-PM8F5904V | ERJ-PM8F1604V | ERJ-PM8F3604V | ERJ-PM8F5104V |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance | 5.6 mOhms | 5.62 MOhms | 5.9 mOhms | 1.6 mOhms | 3.6 mOhms | 5.1 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.667W, 2/3W | 0.667W, 2/3W | 0.667W, 2/3W | 0.667W, 2/3W | 0.667W, 2/3W | 0.667W, 2/3W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, High Voltage, Pulse Withstanding | Automotive AEC-Q200, High Voltage, Pulse Withstanding | Automotive AEC-Q200, High Voltage, Pulse Withstanding | Automotive AEC-Q200, High Voltage, Pulse Withstanding | Automotive AEC-Q200, High Voltage, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
