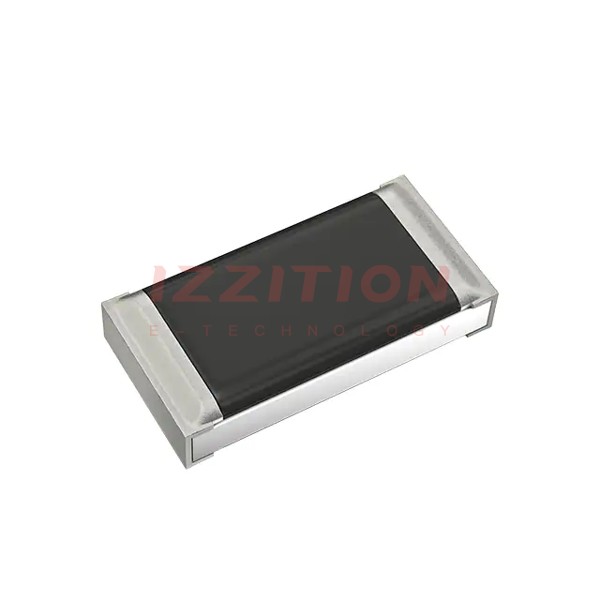

| Part Number | ERJ-PA2F1500X | ERJ-PA2F15R0X | ERJ-PA2F1502X | ERJ-PA2F1503X | ERJ-PA2F1501X | ERJ-PA2F1600X | ERJ-PA2F1800X | ERJ-PA2F1540X | ERJ-PA2F1580X | ERJ-PA2F1000X | ERJ-PA2F1100X | ERJ-PA2F1200X | ERJ-PA2F1300X | ERJ-PA2F1400X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 150 Ohms | 15 Ohms | 15 kOhms | 150 kOhms | 1.5 kOhms | 160 Ohms | 180 Ohms | 154 Ohms | 158 Ohms | 100 Ohms | 110 Ohms | 120 Ohms | 130 Ohms | 140 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 402 | 402 | 402 | 402 | 402 | 402 | 402 | 402 | 402 | 402 | 402 | 402 | 402 | 402 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
