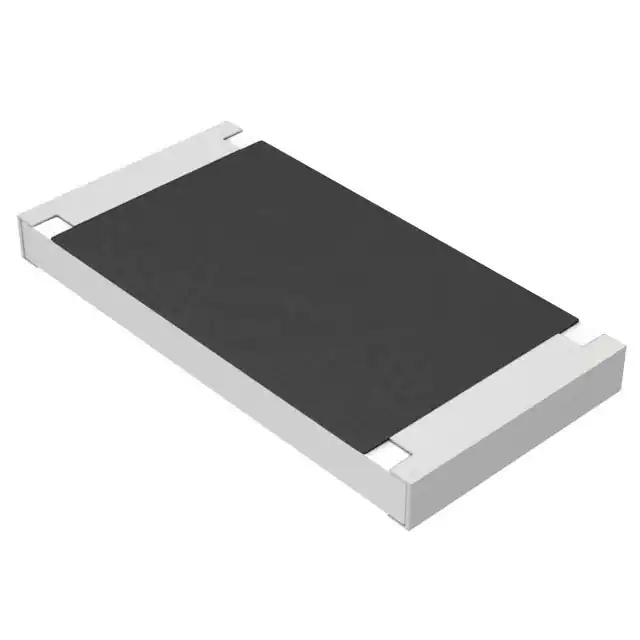

| Part Number | ERJ-1TYJ564U | ERJ-1WYJ564U | ERJ-1TYJ164U | ERJ-1TYJ364U | ERJ-1TYJ514U | ERJ-1TYJ560U | ERJ-1TYJ561U | ERJ-1TYJ562U | ERJ-1TYJ563U |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Not For New Designs | Obsolete | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Resistance | 560 kOhms | 560 kOhms | 160 kOhms | 360 kOhms | 510 kOhms | 56 Ohms | 560 Ohms | 5.6 kOhms | 56 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200 | - | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 |
| Ratings | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.252" L x 0.126" W (6.40mm x 3.20mm) | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.047" (1.20mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
