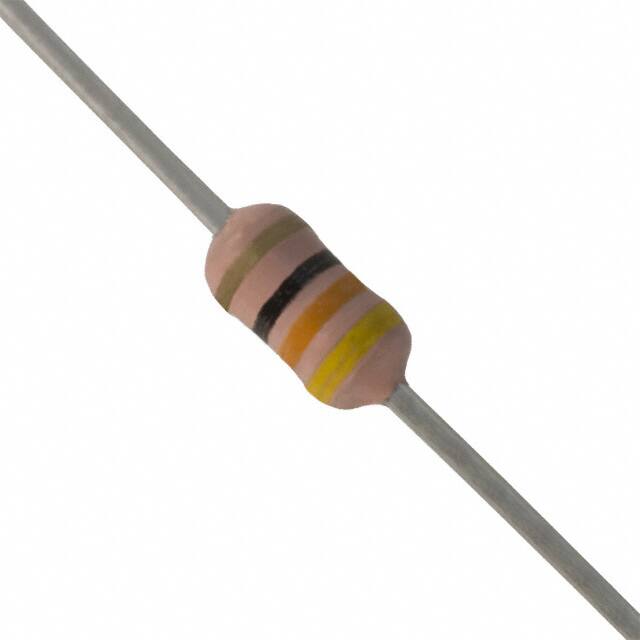

| Part Number | ERD-S2TJ430V | ERD-S2TJ434V | ERD-S2TJ470V | ERD-S2TJ431V | ERD-S2TJ432V | ERD-S2TJ433V | ERD-S2TJ130V | ERD-S2TJ330V |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 43 Ohms | 430 kOhms | 47 Ohms | 430 Ohms | 4.3 kOhms | 43 kOhms | 13 Ohms | 33 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -150/ -350ppm/°C | -150/ -700ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
