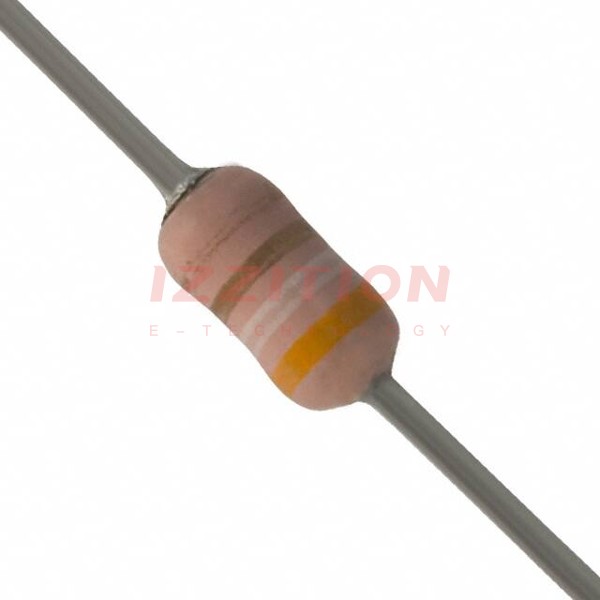

| Part Number | ERD-S2TJ3R9V | ERD-S2TJ3R0V | ERD-S2TJ3R3V | ERD-S2TJ3R6V |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 3.9 Ohms | 3 Ohms | 3.3 Ohms | 3.6 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - |
| Temperature Coefficient | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) |
| Height - Seated (Max) | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
