Please send RFQ , we will respond immediately.

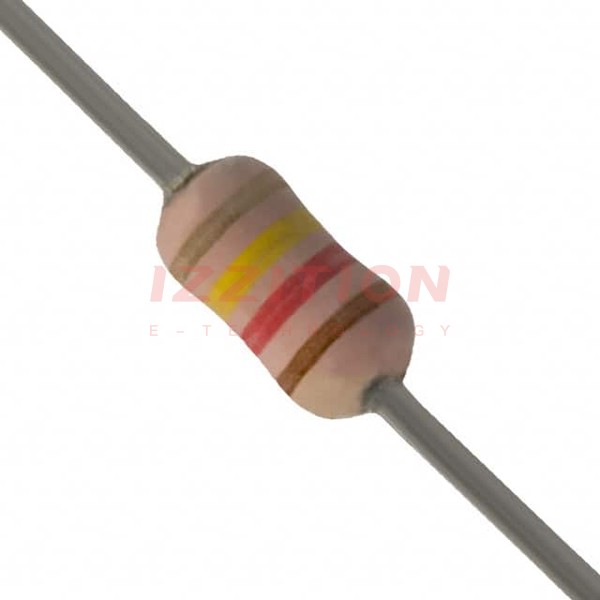

| Part Number | ERD-S2TJ124V | ERD-S2TJ164V | ERD-S2TJ125V | ERD-S2TJ134V | ERD-S2TJ154V | ERD-S2TJ184V | ERD-S2TJ224V | ERD-S2TJ104V | ERD-S2TJ114V | ERD-S2TJ120V | ERD-S2TJ121V | ERD-S2TJ122V | ERD-S2TJ123V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 120 kOhms | 160 kOhms | 1.2 mOhms | 130 kOhms | 150 kOhms | 180 kOhms | 220 kOhms | 100 kOhms | 110 kOhms | 12 Ohms | 120 Ohms | 1.2 kOhms | 12 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -150/ -500ppm/°C | -150/ -500ppm/°C | -150/ -1000ppm/°C | -150/ -500ppm/°C | -150/ -500ppm/°C | -150/ -500ppm/°C | -150/ -700ppm/°C | -150/ -500ppm/°C | -150/ -500ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
