Please send RFQ , we will respond immediately.

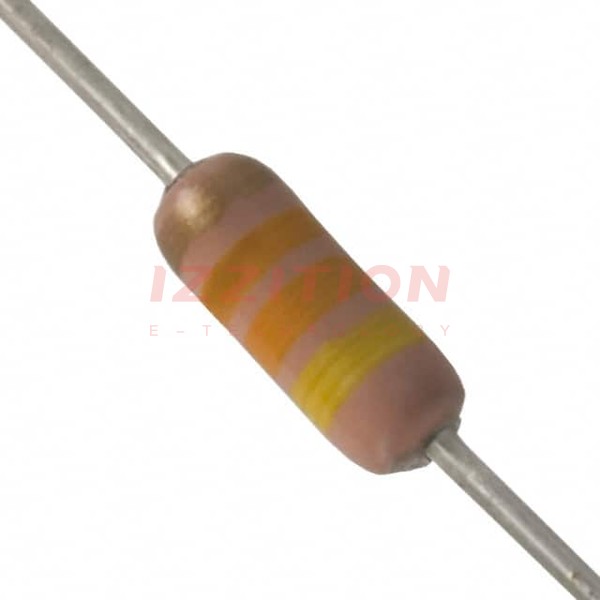

| Part Number | ERD-S1TJ433V | ERD-S1TJ4R3V | ERD-S1TJ473V | ERD-S1TJ434V | ERD-S1TJ133V | ERD-S1TJ333V | ERD-S1TJ430V | ERD-S1TJ431V | ERD-S1TJ432V |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 43 kOhms | 4.3 Ohms | 47 kOhms | 430 kOhms | 13 kOhms | 33 kOhms | 43 Ohms | 430 Ohms | 4.3 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | -150/ -350ppm/°C | ±350ppm/°C | -150/ -350ppm/°C | -150/ -500ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
