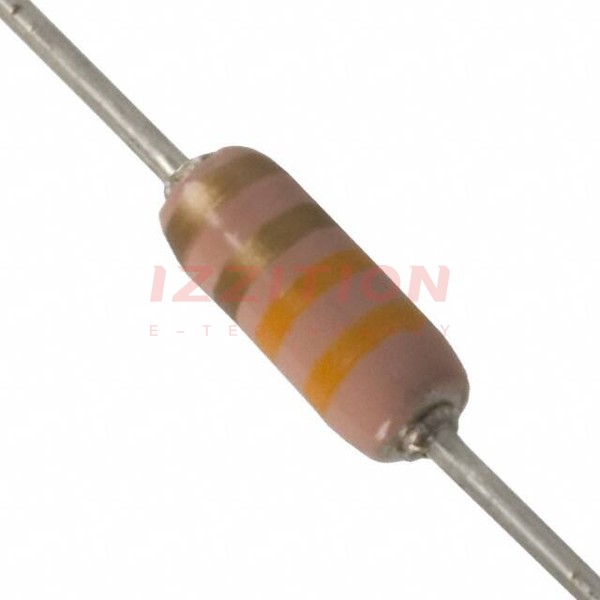

| Part Number | ERD-S1TJ3R3V | ERD-S1TJ3R9V | ERD-S1TJ3R6V | ERD-S1TJ4R3V | ERD-S1TJ1R3V | ERD-S1TJ303V | ERD-S1TJ333V | ERD-S1TJ363V | ERD-S1TJ393V | ERD-S1TJ3R0V |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 3.3 Ohms | 3.9 Ohms | 3.6 Ohms | 4.3 Ohms | 1.3 Ohms | 30 kOhms | 33 kOhms | 36 kOhms | 39 kOhms | 3 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film | Carbon Film |
| Features | - | - | - | - | - | - | - | - | - | - |
| Temperature Coefficient | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | ±350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | -150/ -350ppm/°C | ±350ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
