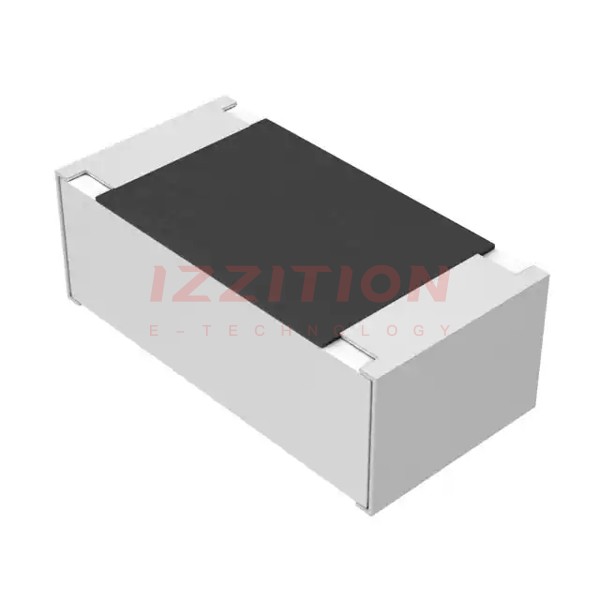

| Part Number | ERA-2AED123X | ERA-2AED153X | ERA-2AED823X | ERA-2AED623X | ERA-2AED223X | ERA-2AED183X | ERA-2AED133X | ERA-2AED163X | ERA-2AED103X | ERA-2AED113X | ERA-2AED121X | ERA-2AED122X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 12 kOhms | 15 kOhms | 82 kOhms | 62 kOhms | 22 kOhms | 18 kOhms | 13 kOhms | 16 kOhms | 10 kOhms | 11 kOhms | 120 Ohms | 1.2 kOhms |
| Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Power (Watts) | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W |
| Composition | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 |
| Temperature Coefficient | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
