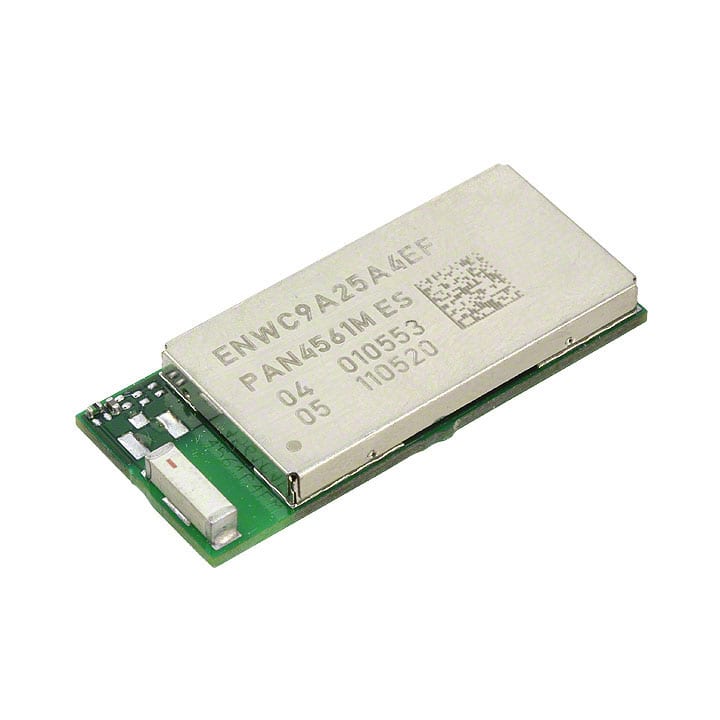

| Part Number | ENW-C9A25A4EF | ENW-C9A21A4EF | ENW-C9A22A4EF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Obsolete | Obsolete |
| RF Family/Standard | 802.15.4 | 802.15.4 | 802.15.4 |
| Protocol | - | - | - |
| Modulation | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 250kbps | 250kbps | 250kbps |
| Power - Output | 10dBm | 0dBm | 20dBm |
| Sensitivity | -102dBm | -92dBm | -102dBm |
| Serial Interfaces | I²C, UART | I²C, UART | I²C, UART |
| Antenna Type | Integrated, Chip | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | MC13213 | MC13213 | MC13213 |
| Memory Size | 60kB Flash, 4kB RAM | 60kB Flash, 4kB RAM | 60kB Flash, 4kB RAM |
| Voltage - Supply | 2.7V ~ 3.4V | 2.7V ~ 3.4V | 2.7V ~ 3.4V |
| Current - Receiving | 47mA | 45mA | 48mA |
| Current - Transmitting | 72mA | 43mA | 200mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | PCB Module | PCB Module | PCB Module |
