Please send RFQ , we will respond immediately.

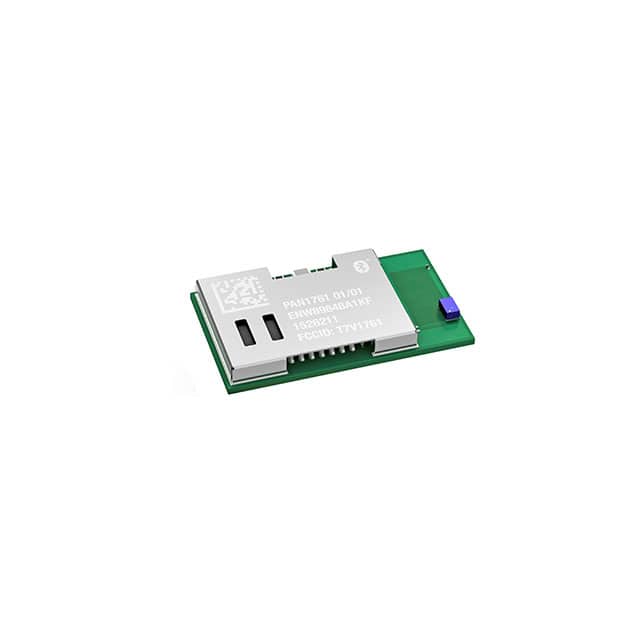

| Part Number | ENW-89848A1KF | ENW-89849A1KF | ENW-89846A1KF | ENW-89847A1KF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Active | Active | Obsolete |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.1 | Bluetooth v4.0 Dual Mode | Bluetooth v4.1, Class 2 | Bluetooth v4.0, Class 2 |
| Modulation | ASK | - | FHSS | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 424kbps | - | - | - |
| Power - Output | 0dBm | 0dBm | 0dBm | 4dBm |
| Sensitivity | -90dBm | -93dBm | -93dBm | -93dBm |
| Serial Interfaces | I²C, UART | - | I²C, SPI, UART | I²C, SPI, UART |
| Antenna Type | Antenna Not Included | Integrated, Chip | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | TC35670 | - | - | TC35667 |
| Memory Size | 512kB EEPROM, 32kB RAM | - | 84kB ROM, 42kB SRAM | 512kB EEPROM, 32kB RAM |
| Voltage - Supply | 1.7V ~ 3.6V | 2.35V ~ 3.3V | 2.35V ~ 3.3V | 2V ~ 3.6V |
| Current - Receiving | - | 4.9mA | 4.9mA | 5.4mA |
| Current - Transmitting | - | 4.9mA | 4.9mA | 5.4mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | Module | Module | Module | Module |
