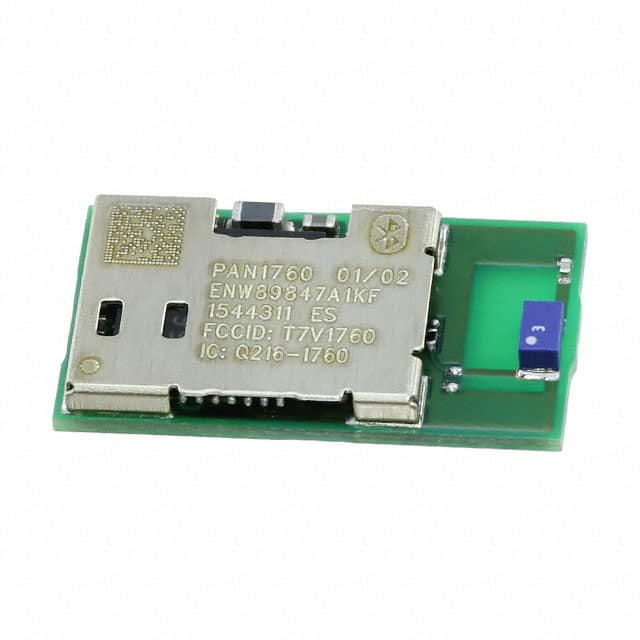

| Part Number | ENW-89847A1KF | ENW-89847A3KF | ENW-89848A1KF | ENW-89849A1KF | ENW-89857A1KF | ENW-89846A1KF |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth | 802.15.4, Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.0, Class 2 | Bluetooth v4.2 | Bluetooth v4.1 | Bluetooth v4.0 Dual Mode | Bluetooth v5.1 | Bluetooth v4.1, Class 2 |
| Modulation | - | - | ASK | - | - | FHSS |
| Frequency | 2.4GHz | 2.4GHz ~ 2.48GHz | 2.4GHz | 2.4GHz | - | 2.4GHz |
| Data Rate | - | - | 424kbps | - | 1Mbps | - |
| Power - Output | 4dBm | 0dBm | 0dBm | 0dBm | 8dBm | 0dBm |
| Sensitivity | -93dBm | -93dBm | -90dBm | -93dBm | -103dBm | -93dBm |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, UART | - | COMP, GPIO, I²C, SPI, nRESET, QDEC, UART, USB | I²C, SPI, UART |
| Antenna Type | Integrated, Chip | Integrated, Chip | Antenna Not Included | Integrated, Chip | PCB Trace | Integrated, Chip |
| Utilized IC / Part | TC35667 | - | TC35670 | - | nRF52820 | - |
| Memory Size | 512kB EEPROM, 32kB RAM | 256kB Flash, 192kB RAM | 512kB EEPROM, 32kB RAM | - | 256kB Flash, 32kB RAM | 84kB ROM, 42kB SRAM |
| Voltage - Supply | 2V ~ 3.6V | 1.8V ~ 3.6V | 1.7V ~ 3.6V | 2.35V ~ 3.3V | 1.7V ~ 5.5V | 2.35V ~ 3.3V |
| Current - Receiving | 5.4mA | 3.3mA | - | 4.9mA | 4.7mA | 4.9mA |
| Current - Transmitting | 5.4mA | 3.3mA | - | 4.9mA | 4.9mA | 4.9mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | Module | Module | Module | Module | 59-SMD Module | Module |
