ELW-CF800F01
  • Share:

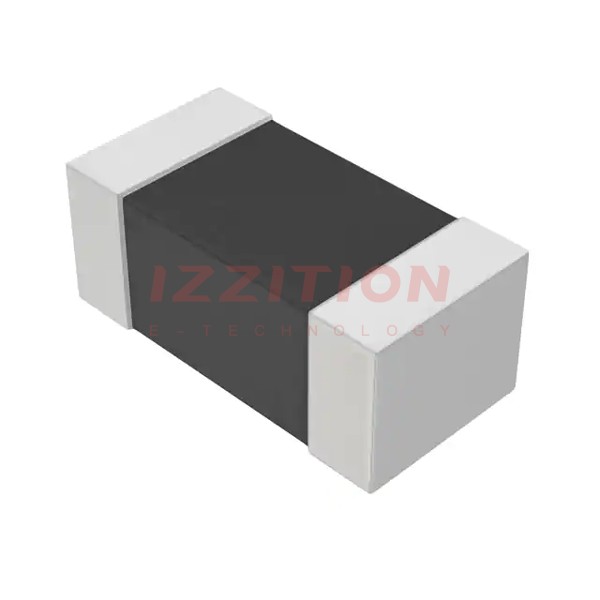

Panasonic Electronic Components ELW-CF800F01

Manufacturer No:
ELW-CF800F01
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELW-CF800F01 Datasheet
ECAD Model:
-
Description:
FILTER LC 800MHZ ESD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Low Pass
Filter Order:2nd
Technology:LC
Number of Channels:1
Center / Cutoff Frequency:800MHz (Cutoff)
Attenuation Value:30dB @ 750MHz ~ 850MHz
Resistance - Channel (Ohms):10
Current:90 mA
Values:-
ESD Protection:Yes
Operating Temperature:-20°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height:0.022" (0.55mm)
0 Remaining View Similar

In Stock

-
217

Please send RFQ , we will respond immediately.
