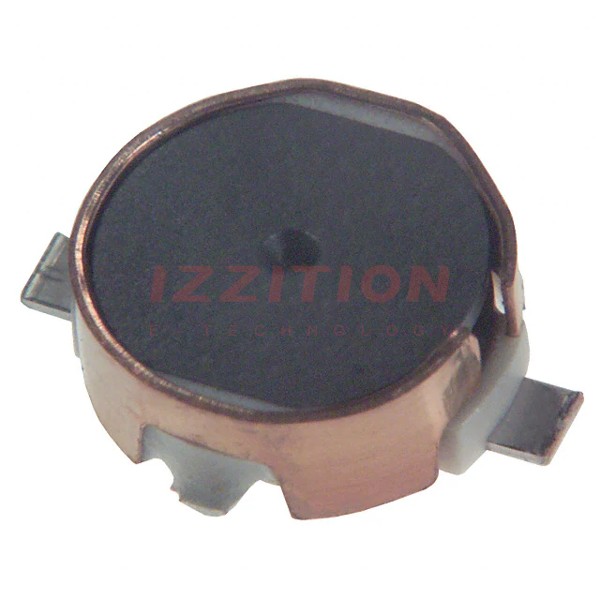

| Part Number | ELT-5KN134C | ELT-5KN135C | ELT-5KN131C |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 1 mH | 1.5 mH | 390 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 55 mA | 40 mA | 120 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 11.5Ohm | 20Ohm | 2.8Ohm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.106" (2.70mm) |
