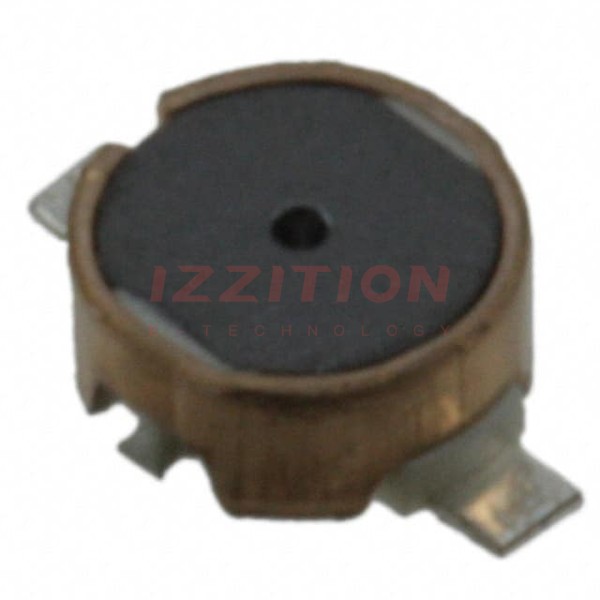

| Part Number | ELT-3KN136B | ELT-3KN131B |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2 mH | 2 mH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 20 mA | 20 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 55Ohm | 44Ohm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.130" L x 0.122" W (3.30mm x 3.10mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Height - Seated (Max) | 0.055" (1.40mm) | 0.087" (2.20mm) |
