ELL-SFG560MA
  • Share:

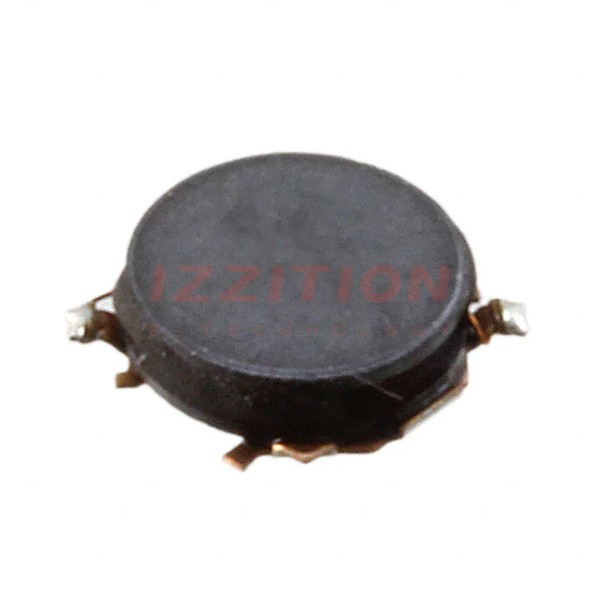

Panasonic Electronic Components ELL-SFG560MA

Manufacturer No:
ELL-SFG560MA
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-SFG560MA Datasheet
ECAD Model:
-
Description:
FIXED IND 56UH 330MA 1.3 OHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:56 µH
Tolerance:±20%
Current Rating (Amps):330 mA
Current - Saturation (Isat):290mA
Shielding:Shielded
DC Resistance (DCR):1.3Ohm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):0.047" (1.20mm)
0 Remaining View Similar

In Stock

$0.85
102

Please send RFQ , we will respond immediately.
