ELL-CTV3R9N
  • Share:

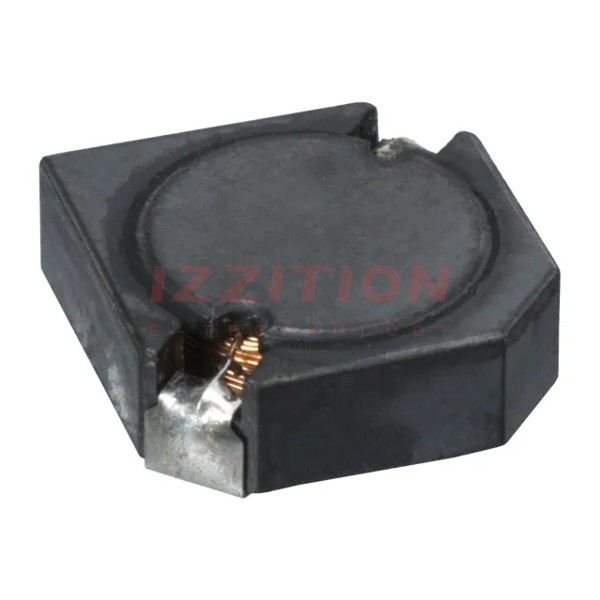

Panasonic Electronic Components ELL-CTV3R9N

Manufacturer No:
ELL-CTV3R9N
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-CTV3R9N Datasheet
ECAD Model:
-
Description:
FIXED IND 3.9UH 5.6A 8.5MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:3.9 µH
Tolerance:±30%
Current Rating (Amps):5.6 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):8.5mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):0.177" (4.50mm)
0 Remaining View Similar

In Stock

-
41

Please send RFQ , we will respond immediately.
