ELL-6SH5R6M
  • Share:

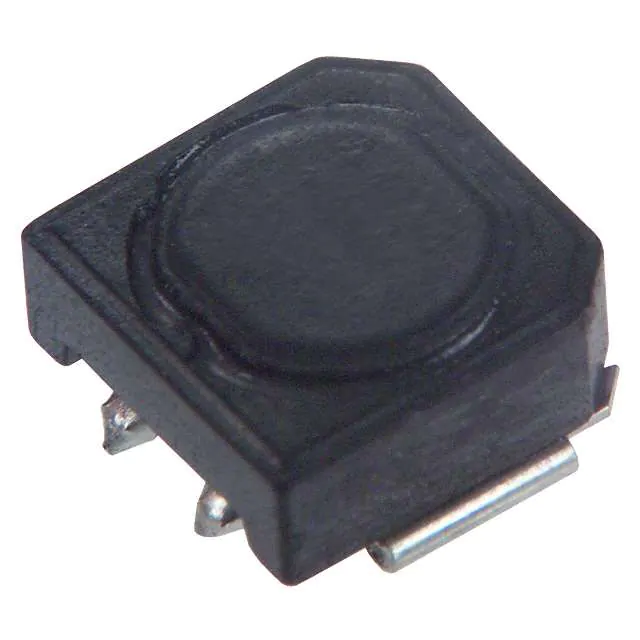

Panasonic Electronic Components ELL-6SH5R6M

Manufacturer No:
ELL-6SH5R6M
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-6SH5R6M Datasheet
ECAD Model:
-
Description:
FIXED IND 5.6UH 1.8A 49 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:5.6 µH
Tolerance:±20%
Current Rating (Amps):1.8 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):49mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.252" L x 0.236" W (6.40mm x 6.00mm)
Height - Seated (Max):0.130" (3.30mm)
0 Remaining View Similar

In Stock

-
208

Please send RFQ , we will respond immediately.
