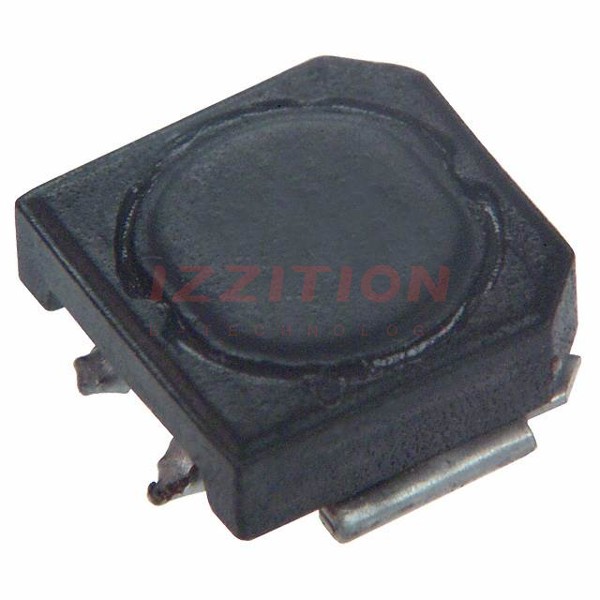

| Part Number | ELL-6RH7R5M | ELL-6RH1R5M |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 7.5 µH | 1.5 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.25 A | 2.4 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 80mOhm | 24mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.252" L x 0.236" W (6.40mm x 6.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) |
