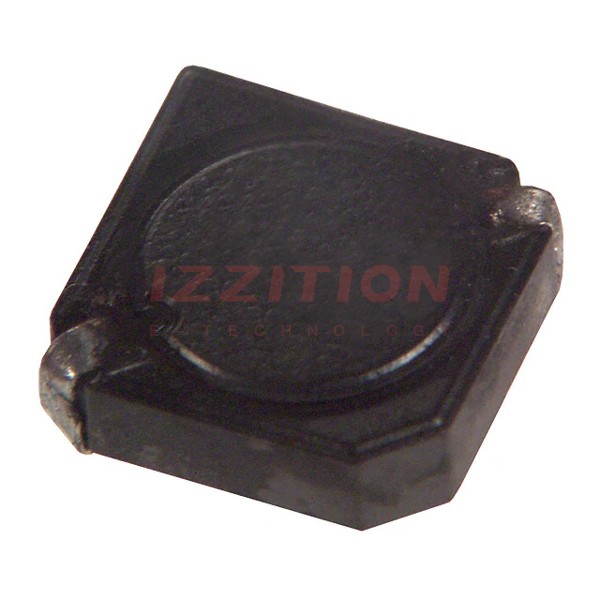

| Part Number | ELL-6PV560M | ELL-6PG560M | ELL-6PM560M |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Wirewound | Wirewound |
| Material - Core | Ferrite | - | - |
| Inductance | 56 µH | 56 µH | 56 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 450 mA | 550 mA | 420 mA |
| Current - Saturation (Isat) | - | 500mA | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 410mOhm | 520mOhm | 500mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
