ELL-6PM2R7N
  • Share:

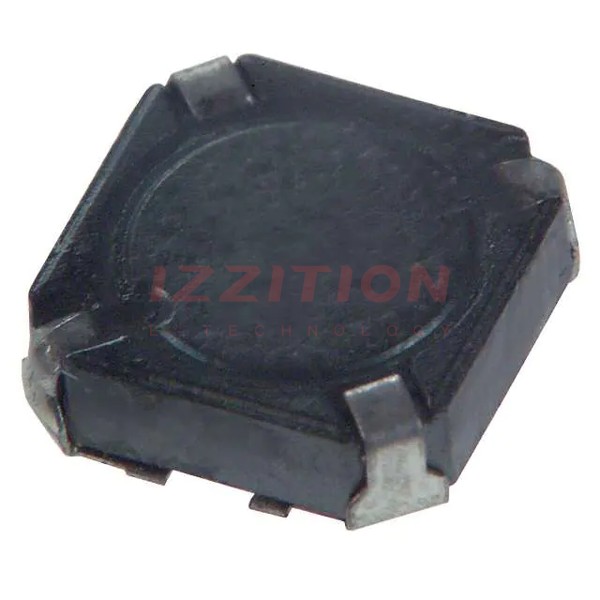

Panasonic Electronic Components ELL-6PM2R7N

Manufacturer No:
ELL-6PM2R7N
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-6PM2R7N Datasheet
ECAD Model:
-
Description:
FIXED IND 2.7UH 2A 29 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:2.7 µH
Tolerance:±30%
Current Rating (Amps):2 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):29mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):0.079" (2.00mm)
0 Remaining View Similar

In Stock

-
207

Please send RFQ , we will respond immediately.

Similar Products

Part Number ELL-6PM2R7N ELL-6PM4R7N   ELL-6GM2R7N   ELL-6PM2R0N
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete
Type Wirewound Wirewound Wirewound Wirewound
Material - Core - - - -
Inductance 2.7 µH 4.7 µH 2.7 µH 2 µH
Tolerance ±30% ±30% ±30% ±30%
Current Rating (Amps) 2 A 1.68 A 1.7 A 2.2 A
Current - Saturation (Isat) - - - -
Shielding Shielded Shielded Shielded Shielded
DC Resistance (DCR) 29mOhm 47mOhm 41mOhm 24mOhm
Q @ Freq - - - -
Frequency - Self Resonant - - - -
Ratings - - - -
Operating Temperature - - - -
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz 100 kHz
Features - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package - - - -
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.079" (2.00mm) 0.079" (2.00mm) 0.063" (1.60mm) 0.079" (2.00mm)
