ELL-6PG5R6N
  • Share:

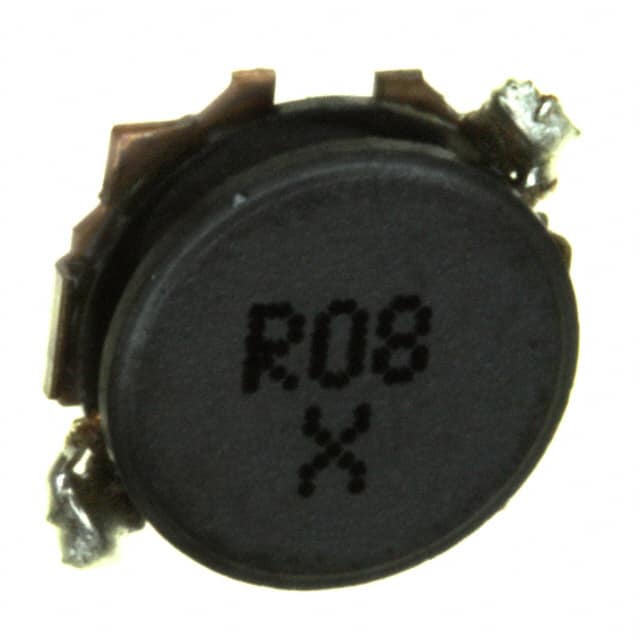

Panasonic Electronic Components ELL-6PG5R6N

Manufacturer No:
ELL-6PG5R6N
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-6PG5R6N Datasheet
ECAD Model:
-
Description:
FIXED IND 5.6UH 1.65A 65MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:5.6 µH
Tolerance:±30%
Current Rating (Amps):1.65 A
Current - Saturation (Isat):1.45A
Shielding:Shielded
DC Resistance (DCR):65mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):0.079" (2.00mm)
0 Remaining View Similar

In Stock

$0.79
612

Please send RFQ , we will respond immediately.

Similar Products

Part Number ELL-6PG5R6N ELL-6PV5R6N   ELL-6PM5R6N
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete
Type Wirewound Drum Core, Wirewound Wirewound
Material - Core - Ferrite -
Inductance 5.6 µH 5.6 µH 5.6 µH
Tolerance ±30% ±30% ±30%
Current Rating (Amps) 1.65 A 1.45 A 1.5 A
Current - Saturation (Isat) 1.45A - -
Shielding Shielded Shielded Shielded
DC Resistance (DCR) 65mOhm 49mOhm 52mOhm
Q @ Freq - - -
Frequency - Self Resonant - - -
Ratings - - -
Operating Temperature - - -
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz
Features - - -
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard
Supplier Device Package - - -
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
