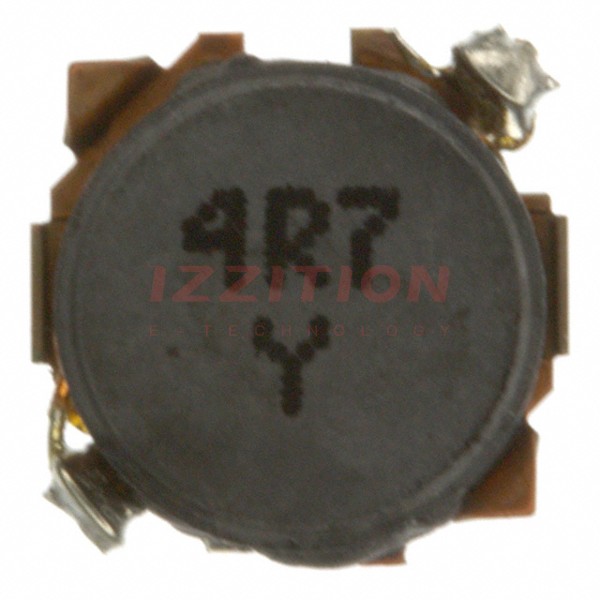

| Part Number | ELL-6GG4R7M | ELL-6GG2R7M |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 4.7 µH | 2.7 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.55 A | 1.8 A |
| Current - Saturation (Isat) | 1.4A | 1.85A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 70mOhm | 54mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) |
