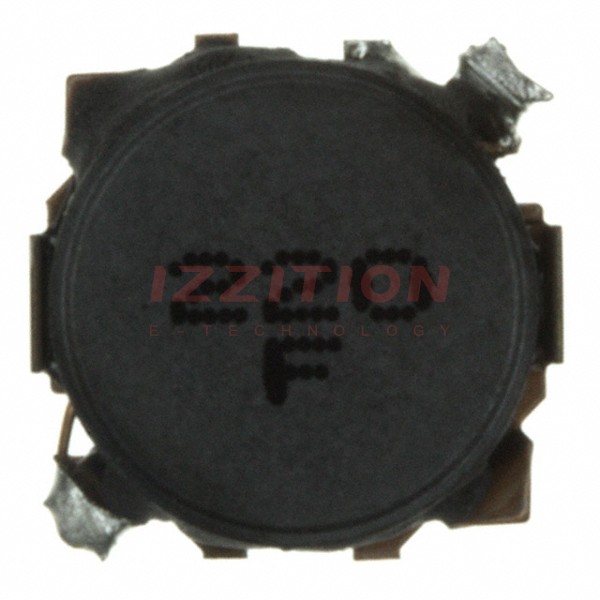

| Part Number | ELL-6GG220M | ELL-6GM220M | ELL-6PG220M |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 22 µH | 22 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 850 mA | 620 mA | 900 mA |
| Current - Saturation (Isat) | 620mA | - | 800mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 300mOhm | 320mOhm | 230mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.079" (2.00mm) |
