ELL-6GG150M
  • Share:

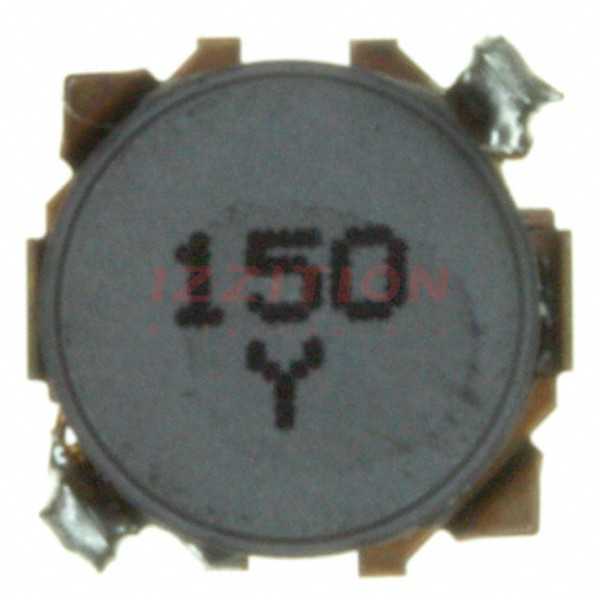

Panasonic Electronic Components ELL-6GG150M

Manufacturer No:
ELL-6GG150M
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-6GG150M Datasheet
ECAD Model:
-
Description:
FIXED IND 15UH 900MA 210MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:15 µH
Tolerance:±20%
Current Rating (Amps):900 mA
Current - Saturation (Isat):800mA
Shielding:Shielded
DC Resistance (DCR):210mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):0.063" (1.60mm)
0 Remaining View Similar

In Stock

$0.94
437

Please send RFQ , we will respond immediately.

Similar Products

Part Number ELL-6GG150M ELL-6GM150M   ELL-6PG150M   ELL-6GG100M
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete
Type Wirewound Wirewound Wirewound Wirewound
Material - Core - - - -
Inductance 15 µH 15 µH 15 µH 10 µH
Tolerance ±20% ±20% ±20% ±20%
Current Rating (Amps) 900 mA 740 mA 1.1 A 1 A
Current - Saturation (Isat) 800mA - 1A 900mA
Shielding Shielded Shielded Shielded Shielded
DC Resistance (DCR) 210mOhm 190mOhm 150mOhm 170mOhm
Q @ Freq - - - -
Frequency - Self Resonant - - - -
Ratings - - - -
Operating Temperature - - - -
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz 100 kHz
Features - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package - - - -
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.236" L x 0.236" W (6.00mm x 6.00mm) 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.063" (1.60mm) 0.063" (1.60mm) 0.079" (2.00mm) 0.063" (1.60mm)
