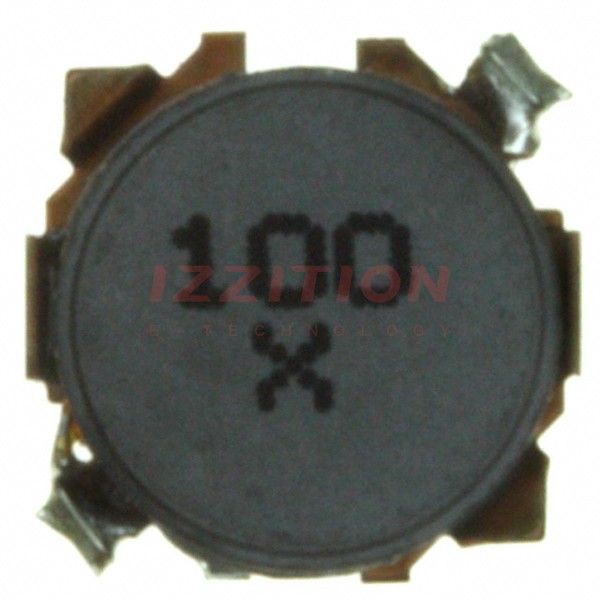

Panasonic Electronic Components ELL-6GG100M

Manufacturer No:
ELL-6GG100M
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-6GG100M Datasheet
ECAD Model:
-
Description:
FIXED IND 10UH 1A 170 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:10 µH
Tolerance:±20%
Current Rating (Amps):1 A
Current - Saturation (Isat):900mA
Shielding:Shielded
DC Resistance (DCR):170mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):0.063" (1.60mm)
