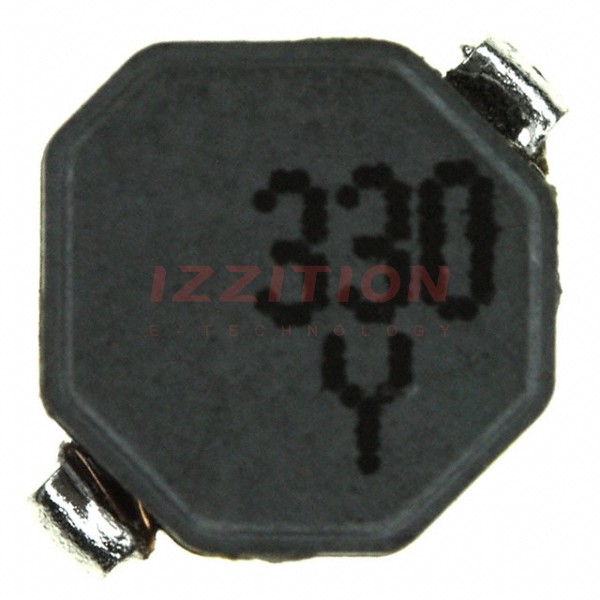

| Part Number | ELL-5PS330M | ELL-5PM330M |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 33 µH | 33 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 490 mA | 530 mA |
| Current - Saturation (Isat) | 490mA | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 470mOhm | 270mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
