ELL-5PS150M
  • Share:

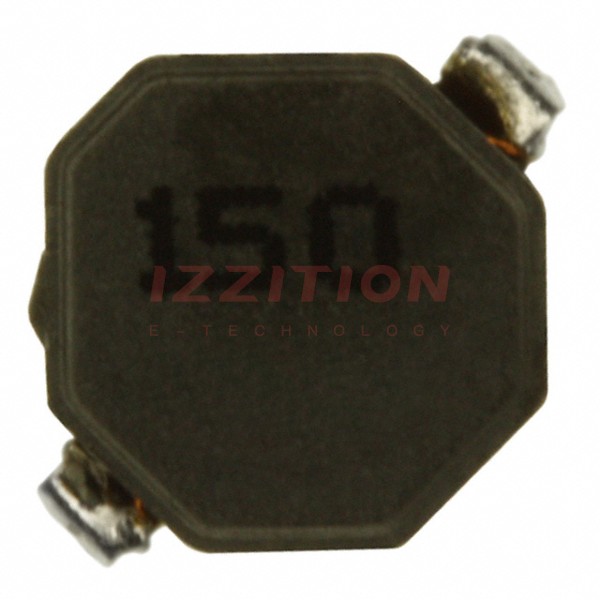

Panasonic Electronic Components ELL-5PS150M

Manufacturer No:
ELL-5PS150M
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-5PS150M Datasheet
ECAD Model:
-
Description:
FIXED IND 15UH 1A 170 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:15 µH
Tolerance:±20%
Current Rating (Amps):1 A
Current - Saturation (Isat):790mA
Shielding:Shielded
DC Resistance (DCR):170mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max):0.079" (2.00mm)
0 Remaining View Similar

In Stock

-
14

Please send RFQ , we will respond immediately.

Similar Products

Part Number ELL-5PS150M ELL-5PM150M   ELL-5PS100M
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete
Type Wirewound Wirewound Wirewound
Material - Core - - -
Inductance 15 µH 15 µH 10 µH
Tolerance ±20% ±20% ±20%
Current Rating (Amps) 1 A 800 mA 1.1 A
Current - Saturation (Isat) 790mA - 1A
Shielding Shielded Shielded Shielded
DC Resistance (DCR) 170mOhm 140mOhm 120mOhm
Q @ Freq - - -
Frequency - Self Resonant - - -
Ratings - - -
Operating Temperature - - -
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz
Features - - -
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard
Supplier Device Package - - -
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm) 0.205" L x 0.205" W (5.20mm x 5.20mm) 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
