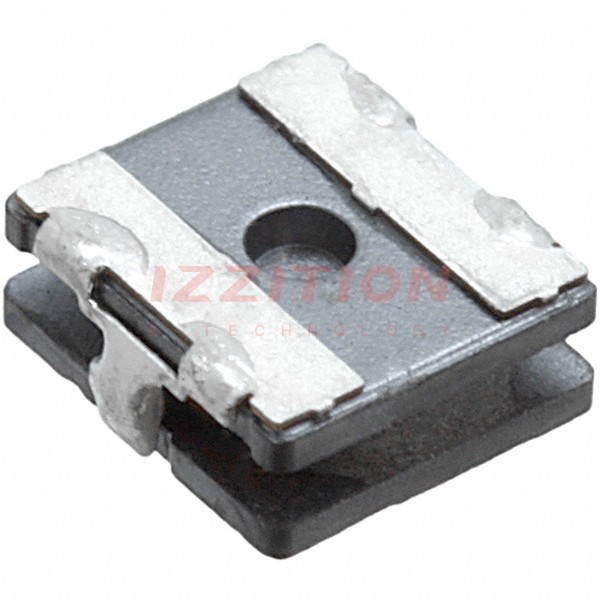

| Part Number | ELL-5PR2R2N | ELL-5PS2R2N | ELL-5PR1R2N |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 2.2 µH | 2.2 µH | 1.2 µH |
| Tolerance | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 2.4 A | 2.1 A | 3 A |
| Current - Saturation (Isat) | 3.2A | 2.1A | 4.2A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 32mOhm | 34mOhm | 21mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
