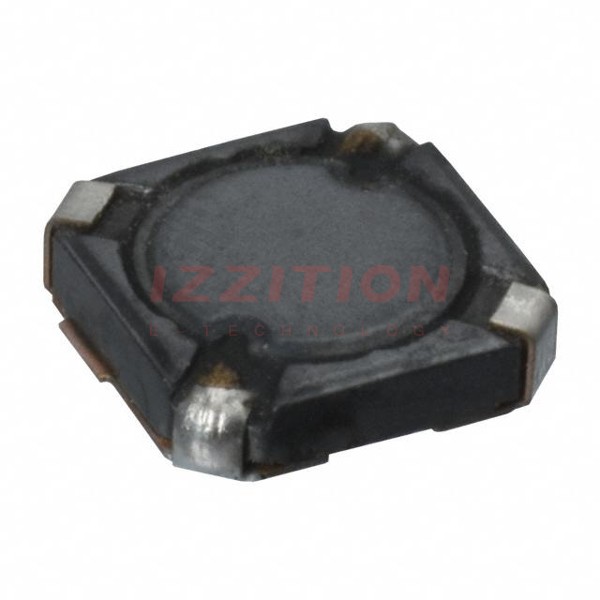

| Part Number | ELL-5GM270M | ELL-5GM470M | ELL-5PM270M | ELL-6GM270M | ELL-3GM270M | ELL-4GM270M | ELL-5GM220M |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - | - | - | - | - |
| Inductance | 27 µH | 47 µH | 27 µH | 27 µH | 27 µH | 27 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 450 mA | 390 mA | 550 mA | 560 mA | 330 mA | 330 mA | 500 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 430mOhm | 930mOhm | 230mOhm | 350mOhm | 1.05Ohm | 640mOhm | 380mOhm |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.079" (2.00mm) | 0.063" (1.60mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
