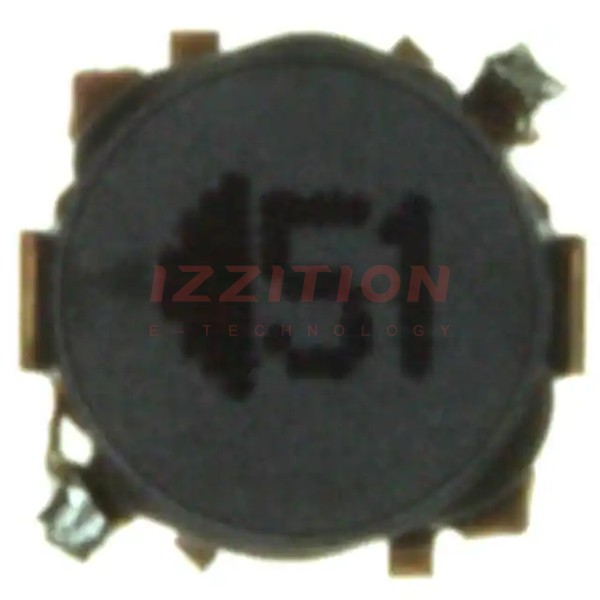

| Part Number | ELL-4LG470MA | ELL-4FG470MA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 47 µH | 47 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 410 mA | 330 mA |
| Current - Saturation (Isat) | 360mA | 290mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 920mOhm | 1.6Ohm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.047" (1.20mm) |
