ELL-4LG1R0NA
  • Share:

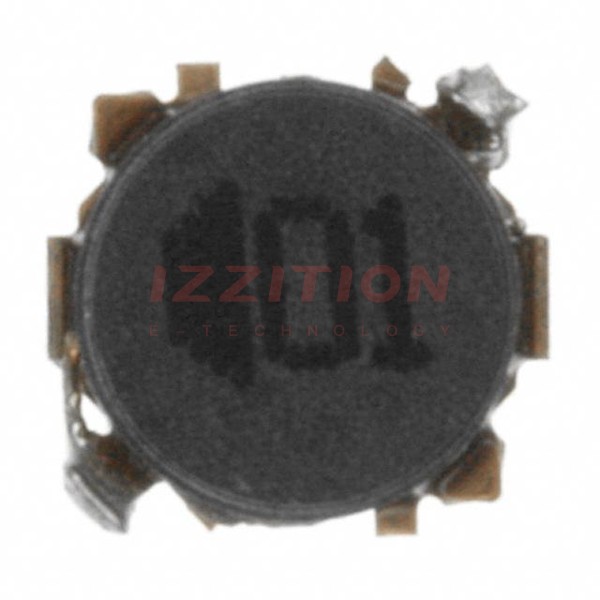

Panasonic Electronic Components ELL-4LG1R0NA

Manufacturer No:
ELL-4LG1R0NA
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-4LG1R0NA Datasheet
ECAD Model:
-
Description:
FIXED IND 1UH 1.9A 43 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:1 µH
Tolerance:±30%
Current Rating (Amps):1.9 A
Current - Saturation (Isat):2.2A
Shielding:Shielded
DC Resistance (DCR):43mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):0.071" (1.80mm)
0 Remaining View Similar

In Stock

$0.68
999

Please send RFQ , we will respond immediately.

Similar Products

Part Number ELL-4LG1R0NA ELL-4LG1R5NA   ELL-4FG1R0NA
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete
Type Wirewound Wirewound Wirewound
Material - Core - - -
Inductance 1 µH 1.5 µH 1 µH
Tolerance ±30% ±30% ±30%
Current Rating (Amps) 1.9 A 1.8 A 1.95 A
Current - Saturation (Isat) 2.2A 1.7A 1.9A
Shielding Shielded Shielded Shielded
DC Resistance (DCR) 43mOhm 48mOhm 45mOhm
Q @ Freq - - -
Frequency - Self Resonant - - -
Ratings - - -
Operating Temperature - - -
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz
Features - - -
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard
Supplier Device Package - - -
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.071" (1.80mm) 0.071" (1.80mm) 0.047" (1.20mm)
