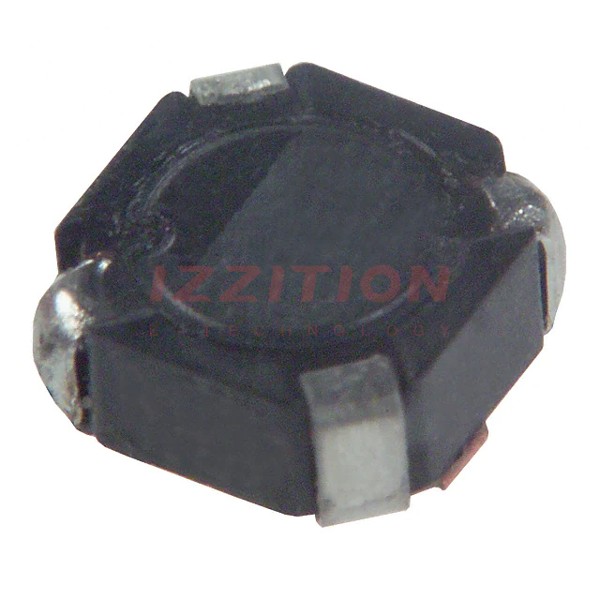

| Part Number | ELL-4GM100M | ELL-4GM180M | ELL-4LM100M | ELL-5GM100M | ELL-4GM150M | ELL-3GM100M | ELL-4GG100M |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - | - | - | - | - |
| Inductance | 10 µH | 18 µH | 10 µH | 10 µH | 15 µH | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 540 mA | 400 mA | 690 mA | 750 mA | 410 mA | 550 mA | 770 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | 900mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 260mOhm | 490mOhm | 180mOhm | 150mOhm | 290mOhm | 350mOhm | 250mOhm |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.071" (1.80mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.055" (1.40mm) |
