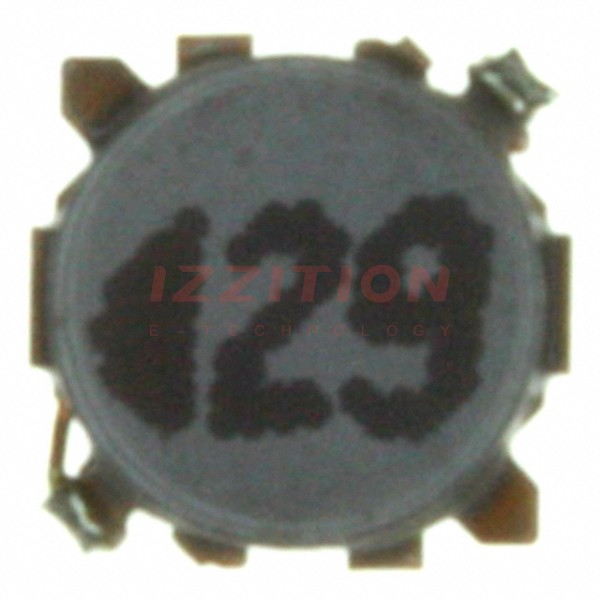

Panasonic Electronic Components ELL-4GG8R2N

Manufacturer No:
ELL-4GG8R2N
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-4GG8R2N Datasheet
ECAD Model:
-
Description:
FIXED IND 8.2UH 870MA 220MOHM SM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:8.2 µH
Tolerance:±30%
Current Rating (Amps):870 mA
Current - Saturation (Isat):1A
Shielding:Shielded
DC Resistance (DCR):220mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):0.055" (1.40mm)
0 Remaining View Similar

In Stock

-
13

Please send RFQ , we will respond immediately.

Similar Products

Part Number ELL-4GG8R2N ELL-4GM8R2N   ELL-4GG1R2N   ELL-4GG2R2N
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete
Type Wirewound Wirewound Wirewound Wirewound
Material - Core - - - -
Inductance 8.2 µH 8.2 µH 1.2 µH 2.2 µH
Tolerance ±30% ±30% ±30% ±30%
Current Rating (Amps) 870 mA 580 mA 1.9 A 1.4 A
Current - Saturation (Isat) 1A - 2.4A 1.7A
Shielding Shielded Shielded Shielded Shielded
DC Resistance (DCR) 220mOhm 220mOhm 50mOhm 88mOhm
Q @ Freq - - - -
Frequency - Self Resonant - - - -
Ratings - - - -
Operating Temperature - - - -
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz 100 kHz
Features - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package - - - -
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.055" (1.40mm) 0.059" (1.50mm) 0.055" (1.40mm) 0.055" (1.40mm)
