ELL-4GG5R6N
  • Share:

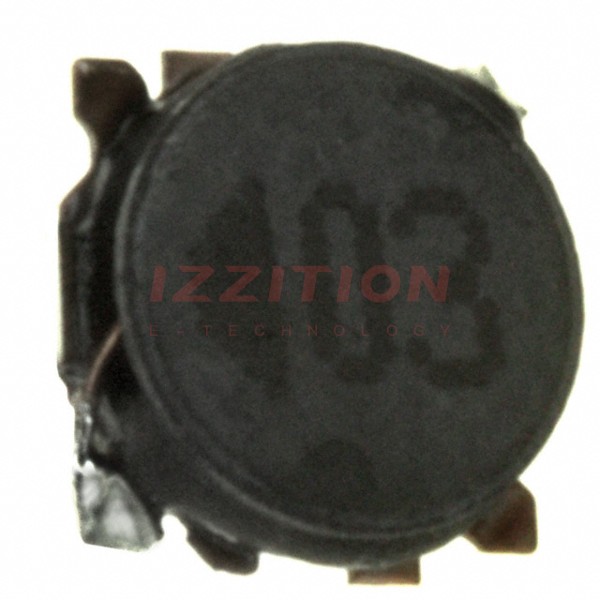

Panasonic Electronic Components ELL-4GG5R6N

Manufacturer No:
ELL-4GG5R6N
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELL-4GG5R6N Datasheet
ECAD Model:
-
Description:
FIXED IND 5.6UH 970MA 170MOHM SM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:5.6 µH
Tolerance:±30%
Current Rating (Amps):970 mA
Current - Saturation (Isat):1.1A
Shielding:Shielded
DC Resistance (DCR):170mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):0.055" (1.40mm)
0 Remaining View Similar

In Stock

$0.60
124

Please send RFQ , we will respond immediately.

Similar Products

Part Number ELL-4GG5R6N ELL-4GM5R6N
Manufacturer Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete
Type Wirewound Wirewound
Material - Core - -
Inductance 5.6 µH 5.6 µH
Tolerance ±30% ±30%
Current Rating (Amps) 970 mA 750 mA
Current - Saturation (Isat) 1.1A -
Shielding Shielded Shielded
DC Resistance (DCR) 170mOhm 130mOhm
Q @ Freq - -
Frequency - Self Resonant - -
Ratings - -
Operating Temperature - -
Inductance Frequency - Test 100 kHz 100 kHz
Features - -
Mounting Type Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard
Supplier Device Package - -
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm) 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.055" (1.40mm) 0.059" (1.50mm)
