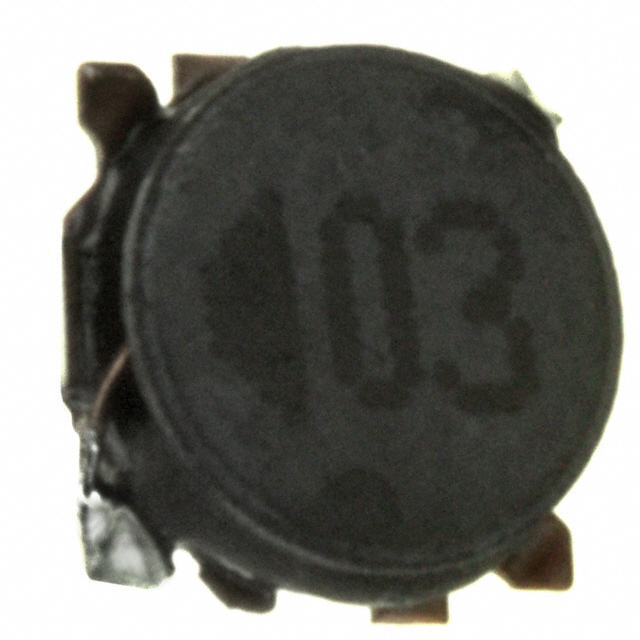

| Part Number | ELL-4GG220M | ELL-4GM220M | ELL-4GG120M |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 22 µH | 22 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 500 mA | 350 mA | 650 mA |
| Current - Saturation (Isat) | 600mA | - | 800mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 640mOhm | 560mOhm | 380mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.055" (1.40mm) | 0.059" (1.50mm) | 0.055" (1.40mm) |
