ELK-EV561FE
  • Share:

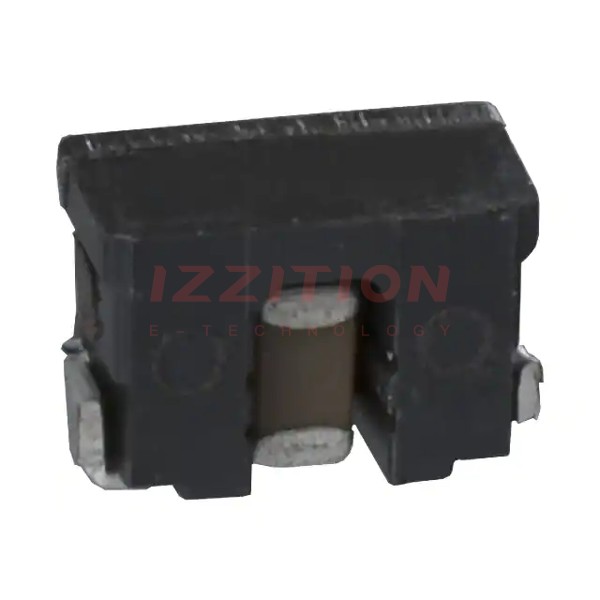

Panasonic Electronic Components ELK-EV561FE

Manufacturer No:
ELK-EV561FE
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELK-EV561FE Datasheet
ECAD Model:
-
Description:
FILTER LC(T) 560PF ESD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Low Pass
Filter Order:3rd
Technology:LC (T-Type)
Number of Channels:1
Center / Cutoff Frequency:10MHz (Cutoff)
Attenuation Value:15dB @ 60MHz ~ 1GHz
Resistance - Channel (Ohms):-
Current:2 A
Values:C = 560pF
ESD Protection:Yes
Operating Temperature:-20°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:22V
Mounting Type:Surface Mount
Package / Case:1207 (3218 Metric), 3 PC Pad
Size / Dimension:0.126" L x 0.071" W (3.20mm x 1.80mm)
Height:0.087" (2.20mm)
0 Remaining View Similar

In Stock

-
234

Please send RFQ , we will respond immediately.
