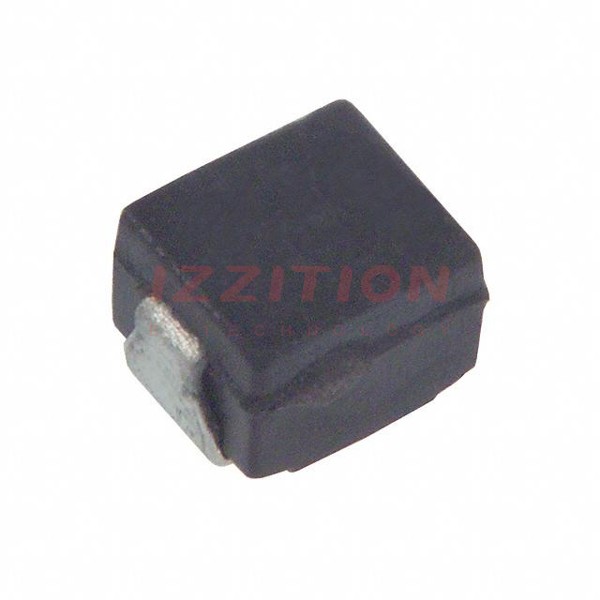

| Part Number | ELJ-SC390KF | ELJ-SA390KF | ELJ-SC330KF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 39 µH | 39 µH | 33 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 13 mA | 9 mA | 14 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 5.7Ohm Max | 3.8Ohm Max | 5.2Ohm Max |
| Q @ Freq | 40 @ 2.52MHz | 40 @ 5MHz | 40 @ 2.52MHz |
| Frequency - Self Resonant | 15MHz | 15MHz | 18MHz |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 2.52 MHz | 1 MHz | 2.52 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1210 (3225 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | - | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.094" (2.40mm) | 0.071" (1.80mm) |
