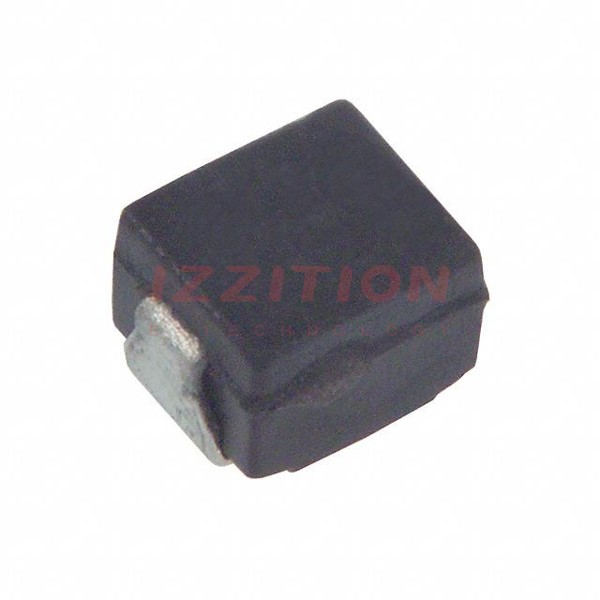

| Part Number | ELJ-SC101KF | ELJ-SA101KF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 100 µH | 100 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 10 mA | 5 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 8.4Ohm Max | 7Ohm Max |
| Q @ Freq | 25 @ 796kHz | 40 @ 1.5MHz |
| Frequency - Self Resonant | 12MHz | 10MHz |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 796 kHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.094" (2.40mm) |
