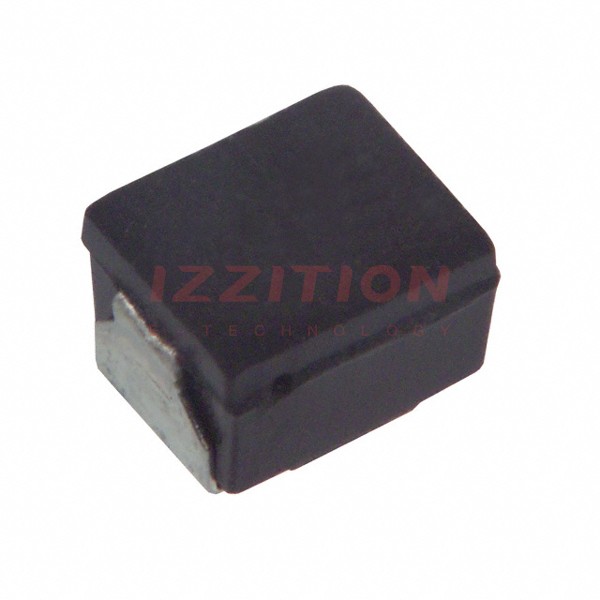

| Part Number | ELJ-SA120KF | ELJ-SA150KF | ELJ-SA180KF | ELJ-SA220KF | ELJ-SA820KF | ELJ-SA121KF | ELJ-SA100KF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | - | - | - | - | - | - | - |
| Material - Core | - | - | - | - | - | - | - |
| Inductance | 12 µH | 15 µH | 18 µH | 22 µH | 82 µH | 120 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 17 mA | 15 mA | 13 mA | 12 mA | 6 mA | 5 mA | 18 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2Ohm Max | 2.2Ohm Max | 2.5Ohm Max | 2.8Ohm Max | 6Ohm Max | 8Ohm Max | 1.8Ohm Max |
| Q @ Freq | 40 @ 5MHz | 40 @ 5MHz | 40 @ 5MHz | 40 @ 5MHz | 40 @ 1.5MHz | 40 @ 1.5MHz | 40 @ 5MHz |
| Frequency - Self Resonant | 28MHz | 25MHz | 23MHz | 20MHz | 11MHz | 9MHz | 30MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - | - |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) |
