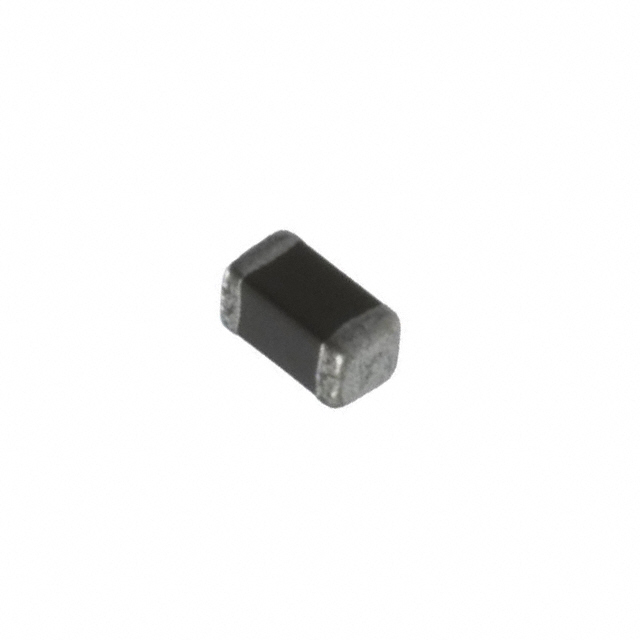

| Part Number | ELJ-RF27NJFB | ELJ-RF47NJFB | ELJ-RF22NJFB | ELJ-RF24NJFB | ELJ-RF27NGFB | ELJ-RF27NJF |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer | Multilayer |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 27 nH | 47 nH | 22 nH | 24 nH | 27 nH | 27 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±2% | ±5% |
| Current Rating (Amps) | 200 mA | 140 mA | 200 mA | 200 mA | 200 mA | 200 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.2Ohm Max | 2.1Ohm Max | 800mOhm Max | 1Ohm Max | 1.2Ohm Max | 1.2Ohm Max |
| Q @ Freq | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz | 8 @ 100MHz |
| Frequency - Self Resonant | 1.8GHz | 1.8GHz | 2GHz | 1.9GHz | 1.8GHz | 1.8GHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
