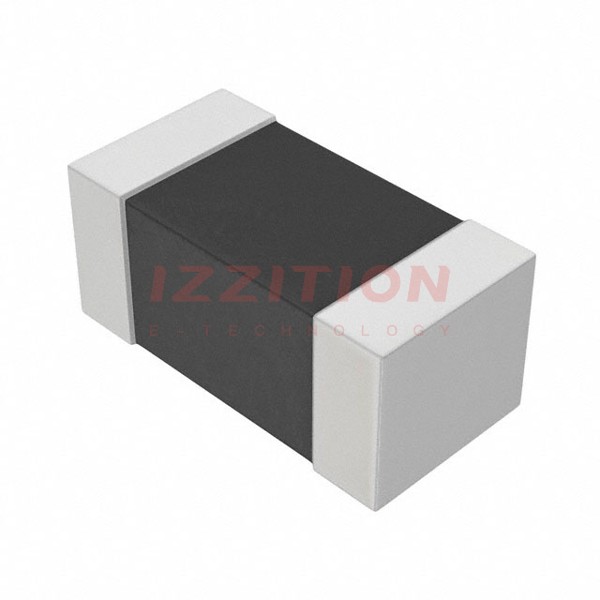

| Part Number | ELJ-QE6N8JFA | ELJ-QE6N8ZFA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic |
| Inductance | 6.8 nH | 6.8 nH |
| Tolerance | ±5% | ±0.2nH |
| Current Rating (Amps) | 540 mA | 540 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 140mOhm Max | 140mOhm Max |
| Q @ Freq | 15 @ 100MHz | 15 @ 100MHz |
| Frequency - Self Resonant | 6GHz | 6GHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) |
