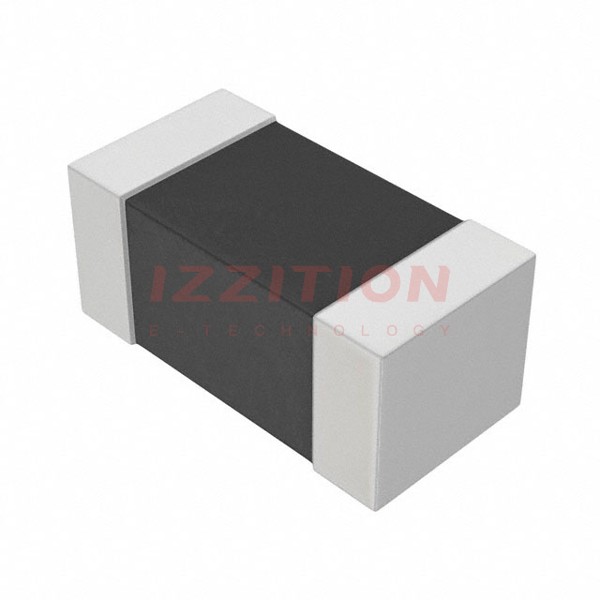

| Part Number | ELJ-QE33NJFA | ELJ-QE39NJFA | ELJ-QE33NGFA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Multilayer | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic | Ceramic |
| Inductance | 33 nH | 39 nH | 33 nH |
| Tolerance | ±5% | ±5% | ±2% |
| Current Rating (Amps) | 230 mA | 210 mA | 230 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 820mOhm Max | 1Ohm Max | 820mOhm Max |
| Q @ Freq | 15 @ 100MHz | 15 @ 100MHz | 15 @ 100MHz |
| Frequency - Self Resonant | 3GHz | 2.8GHz | 3GHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) |
