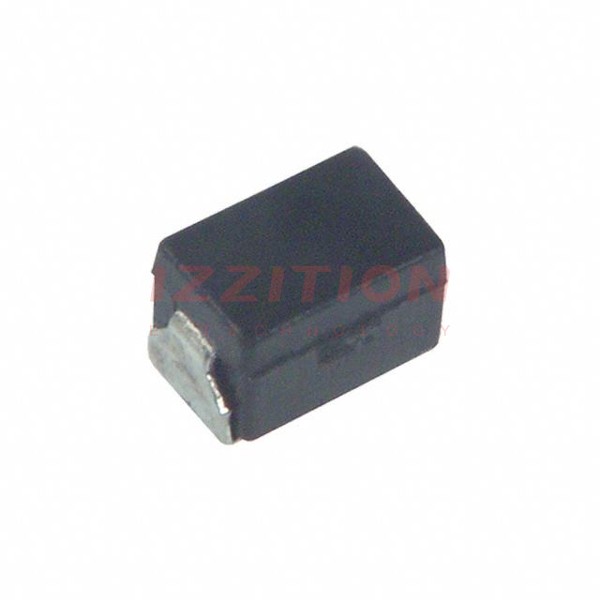

| Part Number | ELJ-PC4R7MF3 | ELJ-PC4R7MF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Wirewound |
| Material - Core | Ferrite | - |
| Inductance | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 610 mA | 285 mA |
| Current - Saturation (Isat) | 220mA | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 250mOhm | 1.2Ohm Max |
| Q @ Freq | - | 8 @ 7.96MHz |
| Frequency - Self Resonant | 65MHz | 43MHz |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) |
