Please send RFQ , we will respond immediately.

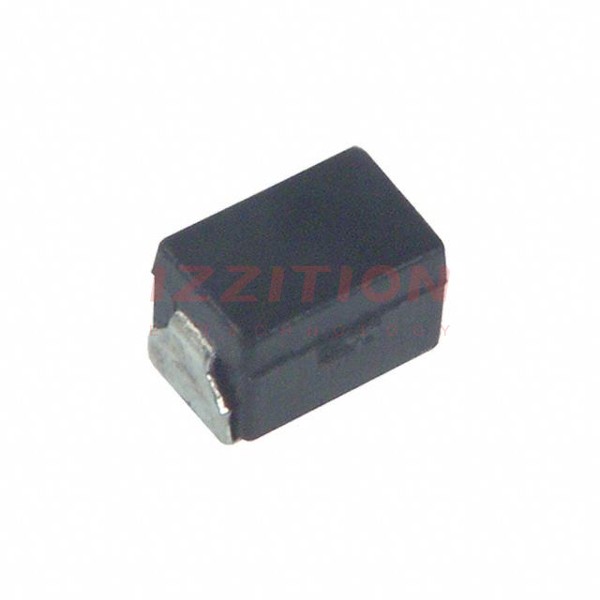

| Part Number | ELJ-PC3R3MF | ELJ-PC3R3MF3 | ELJ-PA3R3MF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | - | Ferrite | Ferrite |
| Inductance | 3.3 µH | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 340 mA | 650 mA | 400 mA |
| Current - Saturation (Isat) | - | 260mA | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 850mOhm Max | 220mOhm | 280mOhm Max |
| Q @ Freq | 8 @ 7.96MHz | - | 7 @ 7.96MHz |
| Frequency - Self Resonant | 55MHz | 75MHz | 58MHz |
| Ratings | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 7.96 MHz | 1 MHz | 7.96 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.094" (2.40mm) |
