ELJ-PC220MF3
  • Share:

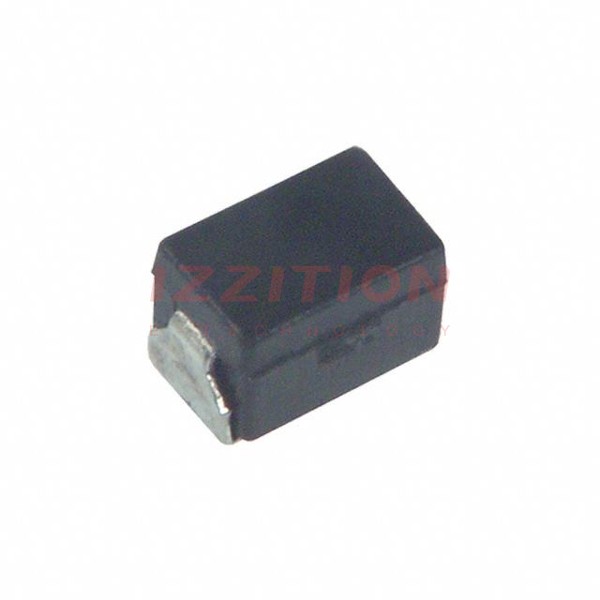

Panasonic Electronic Components ELJ-PC220MF3

Manufacturer No:
ELJ-PC220MF3
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELJ-PC220MF3 Datasheet
ECAD Model:
-
Description:
FIXED IND 22UH 275MA 1.22OHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):275 mA
Current - Saturation (Isat):100mA
Shielding:Unshielded
DC Resistance (DCR):1.22Ohm
Q @ Freq:-
Frequency - Self Resonant:21MHz
Ratings:-
Operating Temperature:-20°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.071" (1.80mm)
0 Remaining View Similar

In Stock

$0.31
1,624

Please send RFQ , we will respond immediately.
